Description

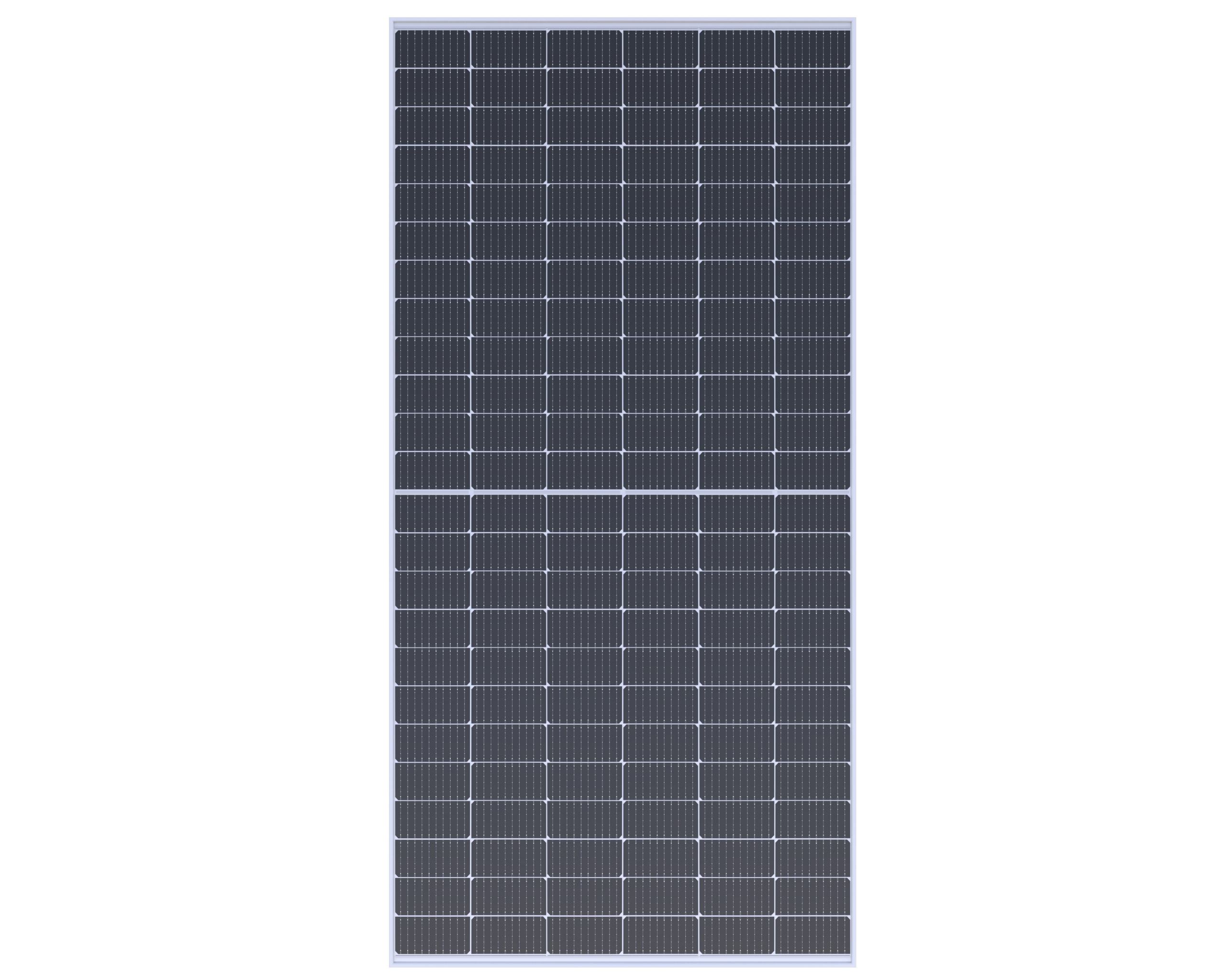

Boviet Solar Vega Series BVM7612M-545-H-HC-BF-DG 545W Bifacial Dual-Glass Solar Panel

The Boviet Solar Vega Series 545W (BVM7612M-545-H-HC-BF-DG) is a bifacial dual-glass monocrystalline PERC solar module from Boviet Solar for commercial, industrial, and utility-scale projects. It pairs 144 half-cut 182 mm PERC cells with 2.0 mm front and transparent rear glass in a silver anodized aluminum frame, delivering 545W of rated front-side power at 20.93% module efficiency with a 0 to +5 W positive power tolerance.

Boviet Solar is a BloombergNEF Tier 1 PV module manufacturer (since 2017) and a PVEL PV Module Reliability Scorecard Top Performer (since 2019), producing modules under ISO 9001, ISO 14001, and ISO 45001 certified management systems. The Vega Series is the company’s bifacial PERC line, built for developers and EPCs who want extra rear-side energy from a durable glass-glass module.

High-Efficiency 545W Solar Performance

• Rated Power Output (Pmax): 545W
• Module Efficiency: 20.93%
• Power Tolerance: 0 to +5 W
• Cells: 144 (6 × 24) half-cut 182 mm monocrystalline PERC cells, 10 busbar
• Bifaciality: 70 ± 5%

Monocrystalline PERC Half-Cut Technology

Boviet’s Altairon Solar Cell™ P-type PERC technology combines a passivated rear surface with a half-cut, 10-busbar cell layout. Splitting each cell lowers internal current and resistive losses, while the multi-busbar design shortens the current path and adds tolerance to micro-cracks. The datasheet also lists anti-LeTID and anti-PID performance and improved incidence-angle and low-irradiance behavior.

• Temperature Coefficient of Pmax: −0.35 %/K
• Temperature Coefficient of Voc: −0.285 %/K
• Temperature Coefficient of Isc: +0.05 %/K
• First-year power degradation: no more than 2%
• Subsequent annual power degradation: no more than 0.45%

Bifacial Energy Generation

The transparent rear glass lets the cells collect light reflected from the ground or roof surface. With a bifaciality of 70 ± 5%, the datasheet rates the 545W module at 600 W with 10% backside gain and 654 W with 20% backside gain, depending on albedo, mounting height, and row spacing.

Boviet Solar Vega Series 545W Electrical Performance

Electrical data at STC (irradiance 1000 W/m², AM 1.5, 25 °C):

• Maximum Power (Pmax): 545W
• Maximum Power Voltage (Vmp): 42.58 V
• Maximum Power Current (Imp): 12.82 A
• Open Circuit Voltage (Voc): 49.98 V
• Short Circuit Current (Isc): 13.72 A
• Module Efficiency: 20.93%
• Maximum Power at NOCT (800 W/m², 20 °C, 1 m/s wind): 412.75 W
• Maximum Series Fuse Rating: 30 A
• Maximum System Voltage: 1500 V DC

Durable Module Construction

The glass-glass build protects the cells on both sides, improving resistance to moisture ingress and mechanical stress over a long service life.

• Front Glass: 2.0 mm (0.079 in) high-transparency, low-iron, AR-coated tempered glass
• Back Glass: 2.0 mm, transparent with a grid
• Frame: 35 mm (1.38 in) ultra-strong anodized aluminum alloy
• Encapsulant: POE
• Fire Type: Type 29
• Junction Box: IP68 rated with 3 bypass diodes
• Output Cables: 4 mm², (+) 1000 mm (39.37 in) / (−) 1000 mm (39.37 in)
• Connector: JM608
• Mechanical Load: +5400 Pa / −2400 Pa
• Operating Temperature: −40 °F to 185 °F

Dimensions, Weight & Packaging

• Dimensions: 2296 × 1134 × 35 mm (90.40 × 44.65 × 1.38 in)
• Weight: 33.5 kg ± 5% (73.86 lb ± 5%)
• 31 pieces per pallet, 20 pallets and 620 pieces per 40HQ container
• Pallet weight: 1088.5 kg (2399.73 lb)
• Pallet dimensions: 2321 × 1135 × 1257 mm (91.38 × 44.69 × 49.49 in)

Installation & Compatibility

At 49.98 V open-circuit voltage and a 1500 V DC system rating, the module suits long 1500 V strings on ground-mounted and tracker arrays. Confirm string length against your inverter’s MPPT and maximum input voltage using the Voc and temperature coefficients above, and follow Boviet’s installation manual for clamping zones and grounding.

Ideal Applications

• Utility-scale solar farms
• Single-axis tracker and fixed-tilt ground mounts
• Commercial and industrial ground-mounted arrays
• Community solar projects
• High-albedo sites where rear-side gain adds yield

Warranty & Certifications

• 12-year product warranty
• 30-year linear power warranty (84.95% output at year 30)
• UL 61730, IEC 61215, IEC 61730, CEC Listed, CE
• IEC 62716 ammonia, IEC 61701 salt mist, IEC TS 62804-1 PID, IEC 60068-2-68 dust and sand tests
• UL 61730 Fire Performance Type 29

Related PV Modules

Other wattages in the Boviet Solar Vega Series:

• Boviet Solar Vega Series BVM7612M-530-H-HC-BF-DG 530W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-535-H-HC-BF-DG 535W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-540-H-HC-BF-DG 540W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-550-H-HC-BF-DG 550W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-555-H-HC-BF-DG 555W Bifacial Dual-Glass Solar Panel

Monofacial options in the Boviet Solar Gamma Series:

• Boviet Solar Gamma Series BVM7610M-435-H-HC 435W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-440-H-HC 440W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-445-H-HC 445W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-450-H-HC 450W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-455-H-HC 455W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-460-H-HC 460W Monofacial PERC Solar Panel

Browse all PV modules in the AmeriSol catalog.

Datasheet

Download the Boviet Solar Vega Series BVM7612M-XXX-H-HC-BF-DG datasheet (PDF)

Availability & Pricing

Contact AmeriSol Energy Solutions for current availability, lead times, pallet or container quantities, and project pricing. Share your destination and target ship window so the team can quote freight and confirm the configuration that fits your schedule.

Why Choose the Boviet Solar Vega Series 545W?

The Boviet Solar Vega Series 545W combines Boviet’s Tier 1 manufacturing record with bifacial PERC half-cut cells, a robust glass-glass build, and 70 ± 5% bifaciality. Choose it when your bill of materials calls for 545W-class output at 20.93% efficiency, UL and IEC certification, and straightforward procurement through AmeriSol Energy Solutions.
