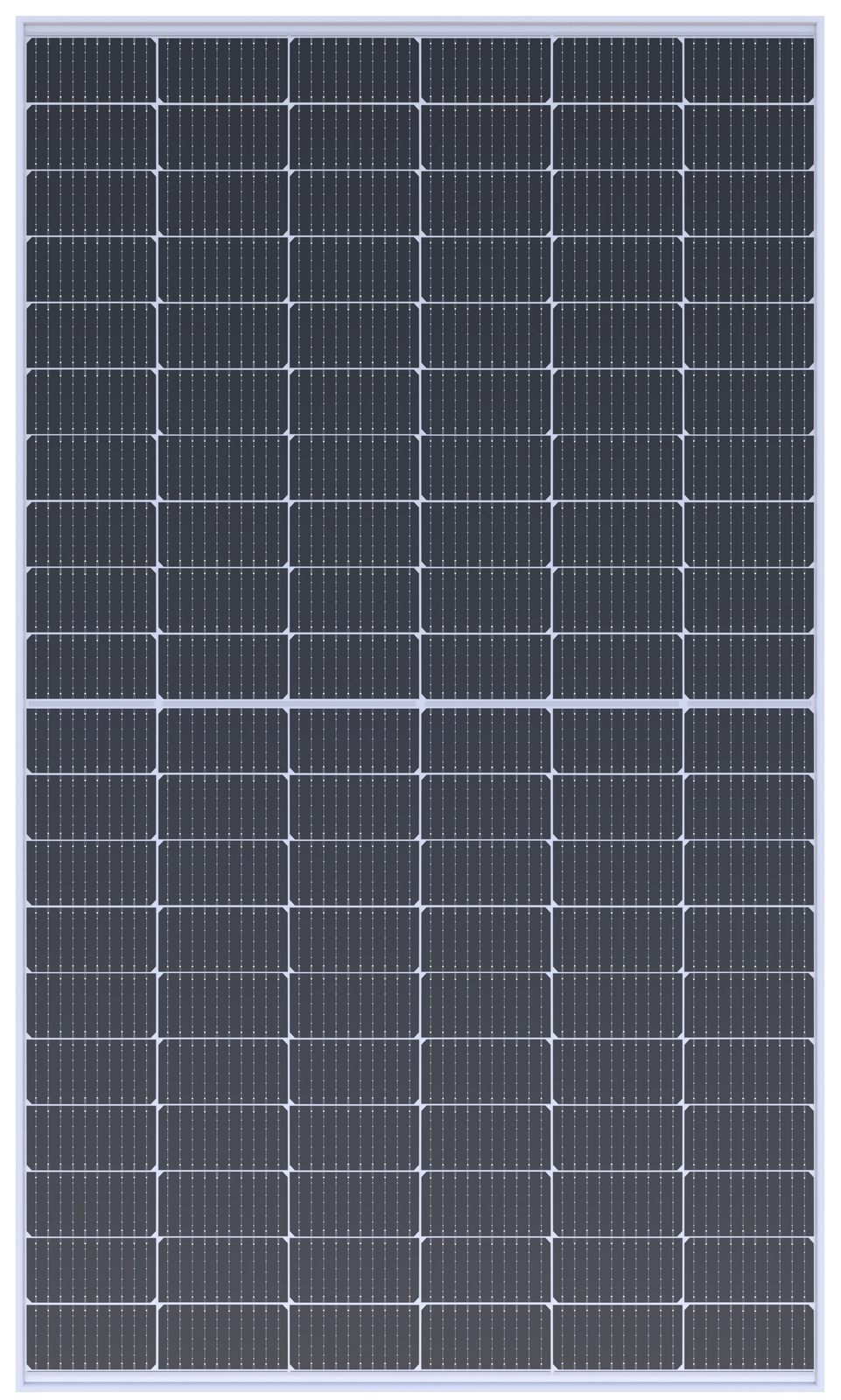

Boviet Solar Gamma Series BVM7610M-445-H-HC 445W Monofacial PERC Solar Panel

The Boviet Solar Gamma Series 445W (BVM7610M-445-H-HC) is a monofacial monocrystalline PERC solar module from Boviet Solar for residential, commercial, and industrial rooftop projects. It pairs 120 half-cut 182 mm PERC cells with a single-glass, white-backsheet design and a silver anodized aluminum frame, delivering 445W of rated power at 20.47% module efficiency with a 0 to +5 W positive power tolerance.

Boviet Solar is a BloombergNEF Tier 1 PV module manufacturer (since 2017) and a PVEL PV Module Reliability Scorecard Top Performer (since 2019), producing modules under ISO 9001, ISO 14001, and ISO 45001 certified management systems. The Gamma Series is the company’s monofacial PERC line, built for installers who want a proven, predictable module in a manageable rooftop format.

High-Efficiency 445W Solar Performance

• Rated Power Output (Pmax): 445W
• Module Efficiency: 20.47%
• Power Tolerance: 0 to +5 W
• Cells: 120 (6 × 20) half-cut 182 mm monocrystalline PERC cells, 10 busbar

Monocrystalline PERC Half-Cut Technology

Boviet’s Altairon Solar Cell™ P-type PERC technology combines a passivated rear surface with a half-cut, 10-busbar cell layout. Splitting each cell lowers internal current and resistive losses, while the multi-busbar design shortens the current path and adds tolerance to micro-cracks. The datasheet also lists anti-LeTID and anti-PID performance and improved incidence-angle and low-irradiance behavior.

• Temperature Coefficient of Pmax: −0.35 %/K
• Temperature Coefficient of Voc: −0.285 %/K
• Temperature Coefficient of Isc: +0.05 %/K
• First-year power degradation: no more than 2%
• Subsequent annual power degradation: no more than 0.45%

Monofacial Single-Glass Design

A monofacial module captures sunlight on the front face only, with an opaque white backsheet behind the cells. This keeps the module lighter and simpler to handle than glass-glass designs, which suits pitched residential roofs and commercial rooftops where rear-side irradiance is minimal and roof loading matters.

Boviet Solar Gamma Series 445W Electrical Performance

Electrical data at STC (irradiance 1000 W/m², AM 1.5, 25 °C):

• Maximum Power (Pmax): 445W
• Maximum Power Voltage (Vmp): 35.18 V
• Maximum Power Current (Imp): 12.67 A
• Open Circuit Voltage (Voc): 41.69 V
• Short Circuit Current (Isc): 13.45 A
• Module Efficiency: 20.47%
• Maximum Power at NOCT (800 W/m², 20 °C, 1 m/s wind): 337.03 W
• Maximum Series Fuse Rating: 30 A
• Maximum System Voltage: 1500 V DC

Durable Module Construction

The single-glass build uses 3.2 mm tempered front glass over a white backsheet, framed in anodized aluminum for rooftop racking.

• Front Glass: 3.2 mm (0.126 in) high-transparency, low-iron, AR-coated tempered glass
• Backsheet: White color backsheet
• Frame: 35 mm (1.38 in) anodized aluminum alloy
• Encapsulant: POE/EVA
• Fire Type: Type 1
• Junction Box: IP68 rated with 3 bypass diodes
• Output Cables: 4 mm², (+) 1000 mm (39.37 in) / (−) 1000 mm (39.37 in)
• Connector: JM608
• Mechanical Load: +5400 Pa / −2400 Pa
• Operating Temperature: −40 °F to 185 °F

Dimensions, Weight & Packaging

• Dimensions: 1917 × 1134 × 35 mm (75.47 × 44.65 × 1.38 in)
• Weight: 24 kg ± 5% (52.7 lb ± 5%)
• 31 pieces per pallet, 24 pallets and 744 pieces per 40HQ container
• Pallet weight: 784 kg (1728.42 lb)
• Pallet dimensions: 1942 × 1135 × 1257 mm (76.46 × 44.69 × 49.49 in)

Installation & Compatibility

At 41.69 V open-circuit voltage and a 1500 V DC system rating, the module fits both residential string inverters and larger commercial string designs. Confirm string length against your inverter’s MPPT and maximum input voltage using the Voc and temperature coefficients above, and follow Boviet’s installation manual for clamping zones and grounding.

Ideal Applications

• Residential rooftop systems
• Commercial rooftop systems
• Industrial rooftop systems
• Carports and small ground-mounted arrays
• Projects that specify proven monofacial PERC technology

Warranty & Certifications

• 12-year product warranty
• 25-year linear power warranty (87.20% output at year 25)
• UL 61730, IEC 61215, IEC 61730, CE Listed
• IEC 62716 ammonia, IEC 61701 salt mist, IEC TS 62804-1 PID, IEC 60068-2-68 dust and sand tests
• UL 61730 Fire Performance Type 1

Related PV Modules

Other wattages in the Boviet Solar Gamma Series:

• Boviet Solar Gamma Series BVM7610M-435-H-HC 435W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-440-H-HC 440W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-450-H-HC 450W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-455-H-HC 455W Monofacial PERC Solar Panel
• Boviet Solar Gamma Series BVM7610M-460-H-HC 460W Monofacial PERC Solar Panel

Bifacial dual-glass options in the Boviet Solar Vega Series:

• Boviet Solar Vega Series BVM7612M-530-H-HC-BF-DG 530W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-535-H-HC-BF-DG 535W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-540-H-HC-BF-DG 540W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-545-H-HC-BF-DG 545W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-550-H-HC-BF-DG 550W Bifacial Dual-Glass Solar Panel
• Boviet Solar Vega Series BVM7612M-555-H-HC-BF-DG 555W Bifacial Dual-Glass Solar Panel

Browse all PV modules in the AmeriSol catalog.

Datasheet

Download the Boviet Solar Gamma Series BVM7610M-XXX-H-HC datasheet (PDF)

Availability & Pricing

Contact AmeriSol Energy Solutions for current availability, lead times, pallet or container quantities, and project pricing. Share your destination and target ship window so the team can quote freight and confirm the configuration that fits your schedule.

Why Choose the Boviet Solar Gamma Series 445W?

The Boviet Solar Gamma Series 445W combines Boviet’s Tier 1 manufacturing record with monofacial PERC half-cut cells, a lighter single-glass build, and a rooftop-friendly 1917 mm format. Choose it when your bill of materials calls for 445W-class output at 20.47% efficiency, UL and IEC certification, and straightforward procurement through AmeriSol Energy Solutions.
