Description

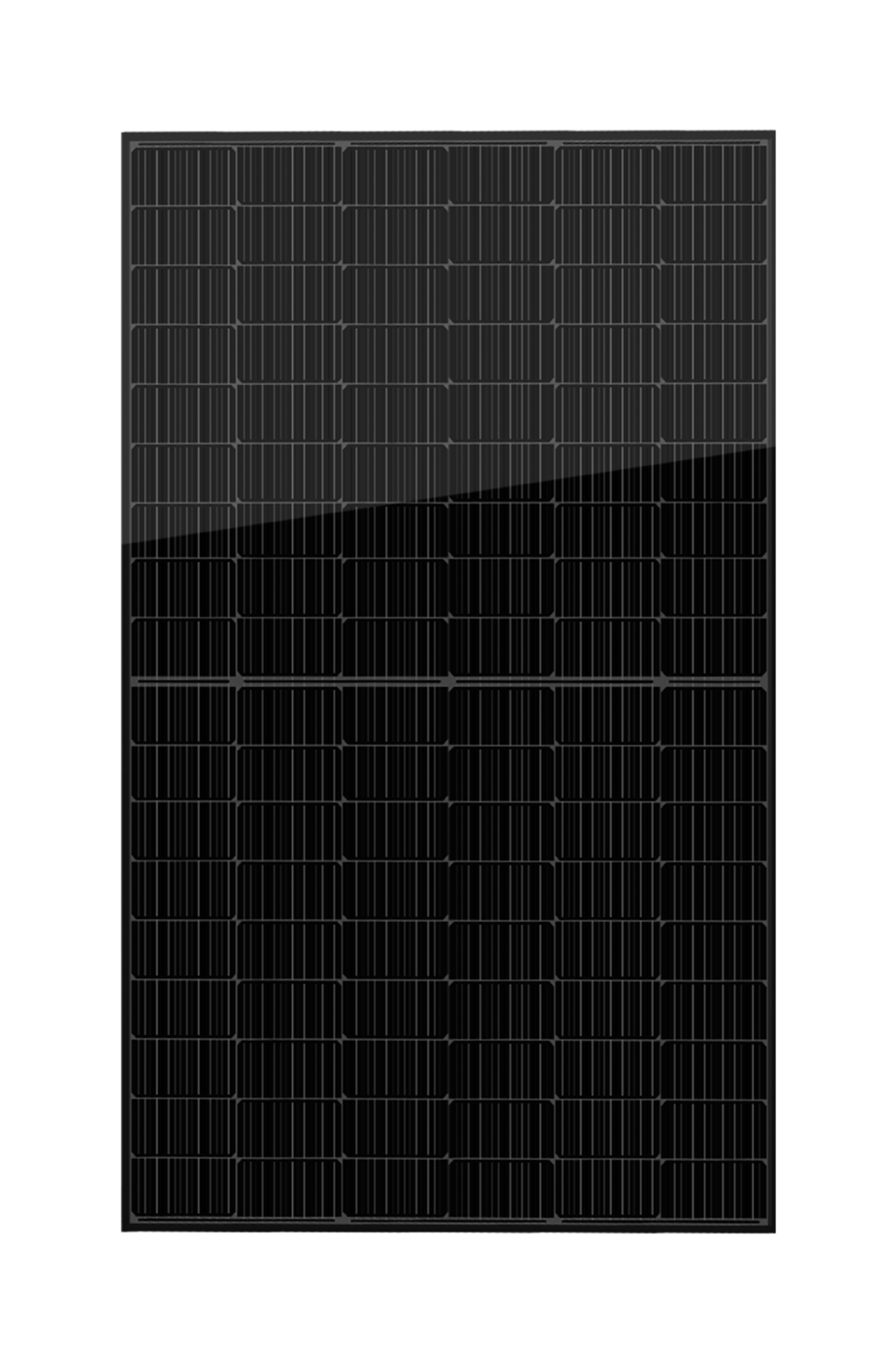

SEG Solar YUKON N Black Diamond SEG-445-BTD-BG 445W N-Type Bifacial Full Black Solar Panel

The SEG Solar YUKON N Black Diamond 445W (SEG-445-BTD-BG) is a high-performance N-type bifacial photovoltaic module engineered for residential solar applications. Combining 108 half-cut N-type cells, 22.79% module efficiency, and durable dual-glass construction, the SEG Solar YUKON N Black Diamond 445W delivers reliable long-term energy production.

Built by SEG Solar, a Houston, Texas-based PV manufacturer, the YUKON N series uses 182 mm N-type cells with super multi-busbar technology for installers and EPCs seeking a dependable residential module.

High-Efficiency 445W Solar Performance

• Rated Power Output: 445W
• Module Efficiency: 22.79%
• 108 half-cut N-type mono-crystalline 182 mm cells (54×2)
• All-black aesthetic: black cells, black frame, black rear
• Optimized for residential installations

Advanced Bifacial Energy Generation

The bifacial dual-glass design captures sunlight from both the front and rear sides of the module, increasing total system production when albedo and mounting height support rear-side gain.

• Bifaciality: 80 ± 10%
• Rear cover: 2.0 mm heat strengthened glass (dual glass, bifacial, full black)
• Additional rear-side energy generation
• Improved project energy yield potential

Proven N-Type Half-Cut Technology

• 108 half-cut N-type mono-crystalline 182 mm cells (54×2)
• Super multi-busbar technology
• Better temperature coefficient: Pmax −0.30 %/°C
• Low attenuation for long-term output

Long-Term Reliability

• 30-Year Product Material & Workmanship Guarantee
• 30-Year Linear Power Output Warranty (87.4% at year 30)
• Mechanical load: 5400 Pa front / 2400 Pa rear
• Fire type (UL 61730): Type 29

SEG Solar YUKON N Black Diamond 445W Electrical Performance

For the SEG-445-BTD-BG model at STC:

• Maximum Power (Pmax): 445W
• Open Circuit Voltage (Voc): 39.44 V
• Short Circuit Current (Isc): 13.98 A
• Maximum Power Voltage (Vmp): 33.48 V
• Maximum Power Current (Imp): 13.29 A
• Module Efficiency: 22.79%
• Maximum System Voltage: 1500 V DC · Max Series Fuse: 30 A

Durable Module Construction

Designed for long-term performance in demanding environments.

• Front Cover: 2.0 mm AR coating heat strengthened glass
• Back Cover: 2.0 mm heat strengthened glass (dual glass, bifacial, full black)
• Frame: Black anodized aluminium alloy, 30 mm
• Junction Box: IP68, 3 diodes
• Cable: 12 AWG PV Wire (UL), 400 mm (+) / 200 mm (−) or customized length
• Connector: MC4

Residential Rooftop Ready

• Dimensions: 1722 × 1134 × 30 mm (67.80 × 44.65 × 1.18 in)
• Weight: 24.0 kg (52.9 lb)
• 36 modules per pallet

Ideal Applications

• Residential rooftop solar systems
• Premium all-black home installations
• Small commercial rooftops
• Elevated or light-colored roofs where rear-side gain is available
• Solar + storage systems

Project Support & System Design Notes

When specifying the SEG Solar YUKON N Black Diamond 445W for a new array, confirm string sizing, inverter MPPT windows, racking compatibility, and local AHJ requirements with your design team. AmeriSol Energy Solutions can help review bill-of-material options and logistics for active project pipelines.

Related PV Modules

Sibling wattage options in the SEG Solar YUKON N Black Diamond family:

• SEG Solar YUKON N Black Diamond 425W (SEG-425-BTD-BG)
• SEG Solar YUKON N Black Diamond 430W (SEG-430-BTD-BG)
• SEG Solar YUKON N Black Diamond 435W (SEG-435-BTD-BG)
• SEG Solar YUKON N Black Diamond 440W (SEG-440-BTD-BG)

Higher-wattage SEG Solar YUKON N bifacial dual-glass modules for commercial and utility projects:

• SEG Solar YUKON N 580W (SEG-580-BTA-BG)
• SEG Solar YUKON N 640W (SEG-640-BTZ-BG)

Browse more PV modules from AmeriSol Energy Solutions, including:

• Aptos Solar DNA-108 MF10 410W SE-PERC Solar Panel
• Aptos Solar DNA-144 BFN10 DG 595W N-type Bifacial Dual-Glass Solar Panel
• Aptos Solar DNA-144 BF10 DG 550W Bifacial Dual-Glass Solar Panel

Procurement & Logistics

AmeriSol Energy Solutions supports distributors, EPCs, and installers with module availability checks, freight coordination, and documentation packages for active bids. Share your target ship window, destination warehouse, and preferred pallet or container configuration so the team can align supply with your construction schedule.

Datasheet

Download the SEG Solar YUKON N SEG-425-445-BTD-BG datasheet (PDF)

Availability

Contact AmeriSol Energy Solutions to inquire for current availability, lead times, and project support. Pricing is available on request.

Why Choose the SEG Solar YUKON N Black Diamond 445W?

The SEG Solar YUKON N Black Diamond 445W combines N-type half-cut cell technology, bifacial dual-glass construction, and documented datasheet performance into a dependable solar solution for installers, developers, and EPCs.

Choose the SEG Solar YUKON N Black Diamond 445W when your bill of materials calls for verified 445W-class output with straightforward procurement through AmeriSol Energy Solutions.
