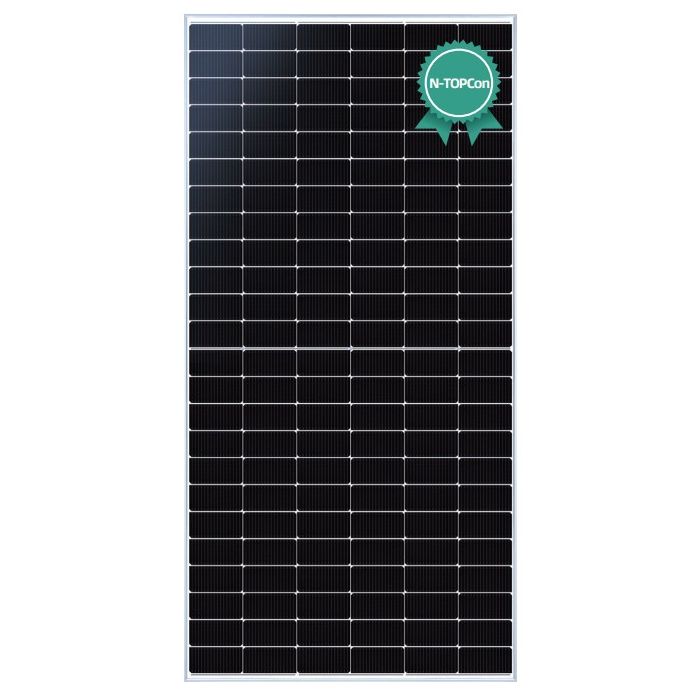

Phono Solar Draco Series 590W & 595W N-Type Bifacial Dual Glass Solar Panels

The Phono Solar Draco Series 590W and 595W solar modules combine advanced N-Type monocrystalline cell technology, bifacial energy generation, and a robust dual-glass design to deliver exceptional performance for commercial, industrial, and utility-scale solar projects. Designed to maximize energy production while minimizing long-term degradation, these high-efficiency modules provide outstanding reliability and durability in even the most demanding environments.

Featuring up to 23.03% module efficiency, over 80% bifaciality, a 30-year linear performance warranty, and compatibility with 1500V DC systems, the Draco Series is an excellent solution for ground-mounted solar farms, commercial rooftops, solar carports, agrivoltaic installations, and other high-performance PV applications.

Advanced N-Type Cell Technology

The Draco Series utilizes next-generation N-Type monocrystalline cells to deliver higher energy production and improved long-term reliability.

Benefits include:

• Lower Light-Induced Degradation (LID)
• Reduced Light and Elevated Temperature Induced Degradation (LeTID)
• Superior performance under low-light conditions
• Improved high-temperature performance
• Increased lifetime energy production
• Greater long-term reliability than conventional P-Type modules

High-Efficiency Bifacial Power Generation

Designed with bifacial technology, the Draco Series captures sunlight from both the front and rear of the module to increase total energy production.

Key advantages include:

• Up to 30% additional energy yield depending on installation conditions
• Cell bifaciality exceeding 80%
• Higher performance over reflective surfaces
• Ideal for utility-scale, carport, and ground-mounted applications
• Lower levelized cost of energy (LCOE)

Outstanding Long-Term Reliability

The combination of advanced cell processing and dual heat-strengthened glass provides exceptional durability and long-term performance.

Reliability features include:

• Dual-glass construction
• Excellent anti-PID characteristics
• First-year degradation less than 1.0%
• Annual degradation of only 0.40%
• 15-year product warranty
• 30-year linear performance warranty
• Guaranteed 87.4% output after 30 years

Engineered for Demanding Environments

The Draco Series is designed to perform reliably across a wide range of installation environments.

Suitable for:

• Utility-scale solar farms
• Commercial rooftop systems
• Industrial facilities
• Building-Integrated Photovoltaics (BIPV)
• Vertical PV installations
• Snow-covered regions
• High-humidity environments
• Windy and dusty locations

Durable Mechanical Design

Built for decades of reliable outdoor operation.

Mechanical features include:

• N-Type monocrystalline cells
• 144 half-cut cells (16BB)
• 2.0mm / 2.0mm heat-strengthened dual glass
• Anodized aluminum alloy frame
• IP68-rated junction box
• Original Stäubli MC4 connectors
• 12 AWG cables
• Maximum system voltage of 1500V DC

High Mechanical Strength

The Draco Series is engineered to withstand harsh environmental conditions.

• Front load rating: 5400 Pa
• Rear load rating: 2400 Pa
• Hail resistance up to 25 mm at 80 km/h
• Operating temperature: -40°C to +85°C
• Fire Rating: UL 61730 Type 29
• Maximum series fuse rating: 30A

Available Models

Product Specifications

• Available Power Classes: 590W & 595W
• Cell Type: N-Type Monocrystalline
• Cell Configuration: 144 Half-Cells (16BB)
• Module Efficiency: Up to 23.03%
• Maximum System Voltage: 1500V DC
• Power Tolerance: 0 to +3%
• Voltage Temperature Coefficient: -0.25%/°C
• Power Temperature Coefficient: -0.29%/°C
• Current Temperature Coefficient: +0.04%/°C
• NOCT: 42 ± 2°C
• Bifaciality: 80 ± 5%
• Dimensions: 2278 × 1134 × 30 mm (89.69 × 44.65 × 1.18 in.)
• Weight: 32.0 kg (70.5 lbs.)
• Glass: 2.0mm + 2.0mm Heat-Strengthened Glass
• Frame: Anodized Aluminum Alloy
• Junction Box: IP68 Rated
• Connector: Original Stäubli MC4

Certifications

The Draco Series is manufactured to internationally recognized quality and safety standards, including:

• IEC 61215
• IEC 61730
• UL 61730
• ISO 9001:2015
• ISO 14001:2015
• ISO 45001:2018

Ideal Applications

• Utility-scale solar farms
• Commercial rooftop solar systems
• Industrial facilities
• Solar carports
• Agrivoltaic projects
• Building-Integrated Photovoltaics (BIPV)
• Floating solar systems
• High-albedo ground-mounted arrays

Available Models

• PS590M8GFH-24/TNH – 590W
• PS595M8GFH-24/TNH – 595W

Why Choose the Phono Solar Draco Series 590W & 595W?

The Phono Solar Draco Series 590W and 595W modules combine premium N-Type technology, high-efficiency bifacial power generation, and durable dual-glass construction to maximize energy production and long-term value. With low degradation rates, exceptional mechanical strength, and a 30-year linear performance warranty, these modules are an ideal choice for commercial and utility-scale solar projects seeking reliable, high-output photovoltaic solutions.
