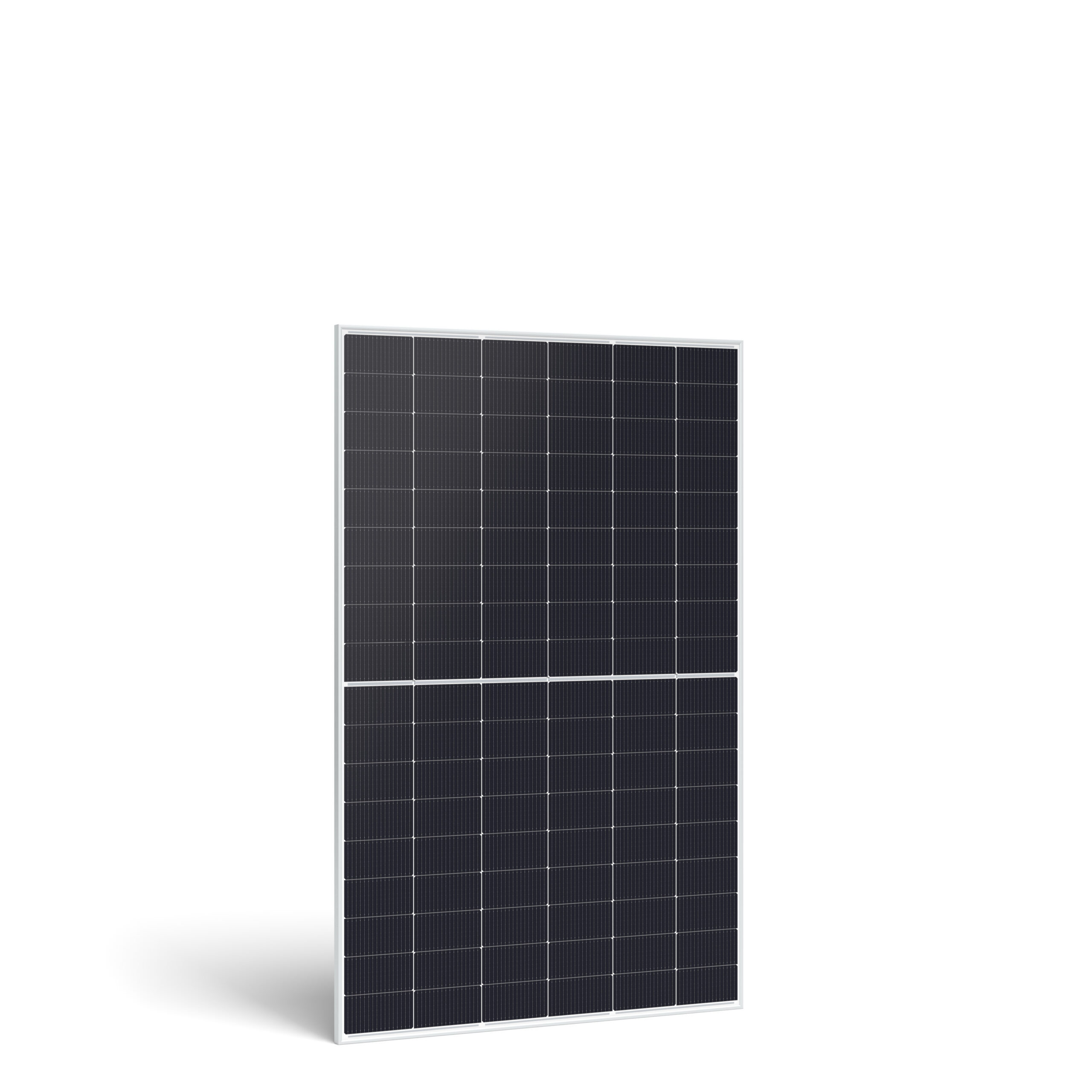

JA Solar DeepBlue 4.0 Pro JAM54D40-450/LB 450W N-Type Bifacial Double Glass Solar Panel

The JA Solar JAM54D40 450W (JAM54D40-450/LB) is an n-type bifacial double glass solar panel from the JA Solar DeepBlue 4.0 Pro JAM54D40 LB series, built for residential and commercial rooftops. It delivers 450W of front-side power at 22.5% module efficiency from 108 (6 × 18) n-type mono half-cells, with 1.6 mm front glass and 1.6 mm back glass.

Inside, the JA Solar JAM54D40 450W uses JA Solar n-type Bycium+ 16BB multi-busbar (MBB) half-cell technology, which the datasheet rates at up to 26% cell conversion efficiency. The datasheet highlights higher power generation with a better LCOE, very low LID for an n-type module, a better temperature coefficient, and a better low-irradiance response.

JA Solar JAM54D40 450W High-Efficiency Performance

At Standard Test Conditions the JA Solar JAM54D40 450W is rated at 450W with 22.5% module efficiency and a positive power tolerance of 0 ~ +3%.

• Rated Maximum Power (Pmax): 450W
• Module Efficiency: 22.5%
• Power Tolerance: 0 ~ +3%
• Cells: 108 (6 × 18) n-type mono half-cells
• Bifaciality: 80% ± 5%

N-Type Bifacial Double Glass Technology

The n-type cells and double glass build of the JA Solar JAM54D40 450W keep degradation low: JA Solar specifies 1% first-year degradation and 0.4% annual degradation over 30 years. The temperature coefficient of Pmax is −0.290 %/°C, so the module keeps more of its output on hot days.

• Temperature Coefficient of Pmax (γ_Pmp): −0.290 %/°C
• Temperature Coefficient of Voc (β_Voc): −0.250 %/°C
• Temperature Coefficient of Isc (α_Isc): +0.045 %/°C
• NOCT: 45 ± 2 °C
• First-year degradation: 1%
• Annual degradation: 0.4% over 30 years

JA Solar JAM54D40 450W Bifacial Energy Gain

Because the rear side is glass, the JA Solar JAM54D40 450W also converts light reflected from the ground. JA Solar publishes electrical characteristics at a 10% solar irradiation ratio (rear/front):

• Rated Max Power (Pmax): 486 W
• Open Circuit Voltage (Voc): 39.30 V
• Max Power Voltage (Vmp): 32.82 V
• Short Circuit Current (Isc): 15.64 A
• Max Power Current (Imp): 14.81 A

JA Solar JAM54D40 450W Electrical Data

Electrical parameters at STC (irradiance 1000 W/m², cell temperature 25 °C, AM1.5G):

• Rated Maximum Power (Pmax): 450W
• Open Circuit Voltage (Voc): 39.30 V
• Maximum Power Voltage (Vmp): 32.82 V
• Short Circuit Current (Isc): 14.48 A
• Maximum Power Current (Imp): 13.71 A
• Module Efficiency: 22.5%

Operating conditions:

• Maximum System Voltage: 1500 V DC
• Operating Temperature: −40 °C ~ +85 °C
• Maximum Series Fuse Rating: 30 A
• Maximum Static Load, Front: 5400 Pa (112 lb/ft²)
• Maximum Static Load, Back: 2400 Pa (50 lb/ft²)
• Safety Class: Class II
• Fire Performance: UL Type 38 / Class C

Durable Double Glass Construction

Glass on both faces protects the cells of the JA Solar JAM54D40 450W and enables bifacial generation. Mechanical parameters from the datasheet:

• Cell: Mono, 108 (6 × 18) n-type mono half-cells
• Front Glass / Back Glass: 1.6 mm / 1.6 mm
• Frame: 30 mm frame (customized frame color available upon request)
• Junction Box: IP68, 3 diodes
• Cable Cross Section: 4 mm² (IEC), 12 AWG (UL)
• Cable Length (including connector): Portrait: 300 mm (+) / 400 mm (−); Landscape: 1200 mm (+) / 1200 mm (−)
• Connector: QC 4.10-351 / MC4-EVO2A

Dimensions, Weight & Packaging

Mechanical and packaging data for the JA Solar JAM54D40 450W:

• Dimensions: 1762 × 1134 × 30 mm (69.4 × 44.6 × 1.18 in)
• Weight: 22 kg (48.5 lb)
• Packaging: 36 pcs/pallet
• Container: 936 pcs/40HQ container

Installation & System Design

With 39.30 V open-circuit voltage and a 1500 V DC system rating, the JA Solar JAM54D40 450W supports long strings. Size strings against your inverter MPPT window and maximum input voltage using the Voc and temperature coefficients above, and follow the JA Solar installation manual for clamping zones, grounding, and handling. Electrical data in the catalog serve for comparison among module types and do not refer to a single module.

Ideal Applications

The JA Solar JAM54D40 450W is a good fit for:

• Residential rooftop solar systems
• Commercial rooftop arrays
• Carports and canopies where the bifacial rear side can collect reflected light
• Ground-mounted residential and small commercial PV systems

JA Solar JAM54D40 450W Warranty & Certifications

• 12-year product warranty
• 30-year linear power output warranty
• Product certificates: IEC 61215, IEC 61730, UL 61215, UL 61730
• ISO 9001:2015 quality management systems
• ISO 14001:2015 environmental management systems
• ISO 45001:2018 occupational health and safety management systems
• IEC 62941:2019 terrestrial PV modules, quality system for PV module manufacturing

Related JA Solar Modules

Other wattages in the same series:

• JA Solar DeepBlue 4.0 Pro JAM54D40-455/LB 455W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM54D40-460/LB 460W N-Type Bifacial Double Glass Solar Panel

More new JA Solar modules:

• JA Solar DeepBlue 4.0 Pro JAM66D45-595/LB 595W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM66D45-600/LB 600W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM66D45-605/LB 605W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM72D40-595/LB 595W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM72D40-600/LB 600W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM72D40-605/LB 605W N-Type Bifacial Double Glass Solar Panel
• JA Solar DeepBlue 4.0 Pro JAM72D42-630/LB 630W N-Type Bifacial Double Glass Solar Panel

Available now from AmeriSol:

• JA Solar JAM66D45 LB 620W N-Type Double Glass Bifacial Solar Module
• JA Solar DeepBlue 4.0 Pro JAM54D41-440/MB 440W Solar Panel
• JA Solar JAM54S31 405W Residential Solar Panel

Browse all PV modules in the AmeriSol catalog, or visit the official JA Solar website.

Datasheet

Download the JA Solar JAM54D40 LB 435–460W (Global-EN-20241105A) datasheet (PDF)

Availability & Pricing

Contact AmeriSol Energy Solutions for current JA Solar JAM54D40 450W availability, lead times, pallet and truckload quantities, and project pricing. Share your project location and target delivery window so the team can confirm the configuration and freight that fit your schedule.

Why Choose the JA Solar JAM54D40 450W?

The JA Solar JAM54D40 450W combines n-type Bycium+ half-cells, a compact 1762 × 1134 mm double glass format, and 12/30-year warranties. Choose it when your project calls for 450W-class output at 22.5% efficiency and dependable procurement through AmeriSol Energy Solutions.
