Description

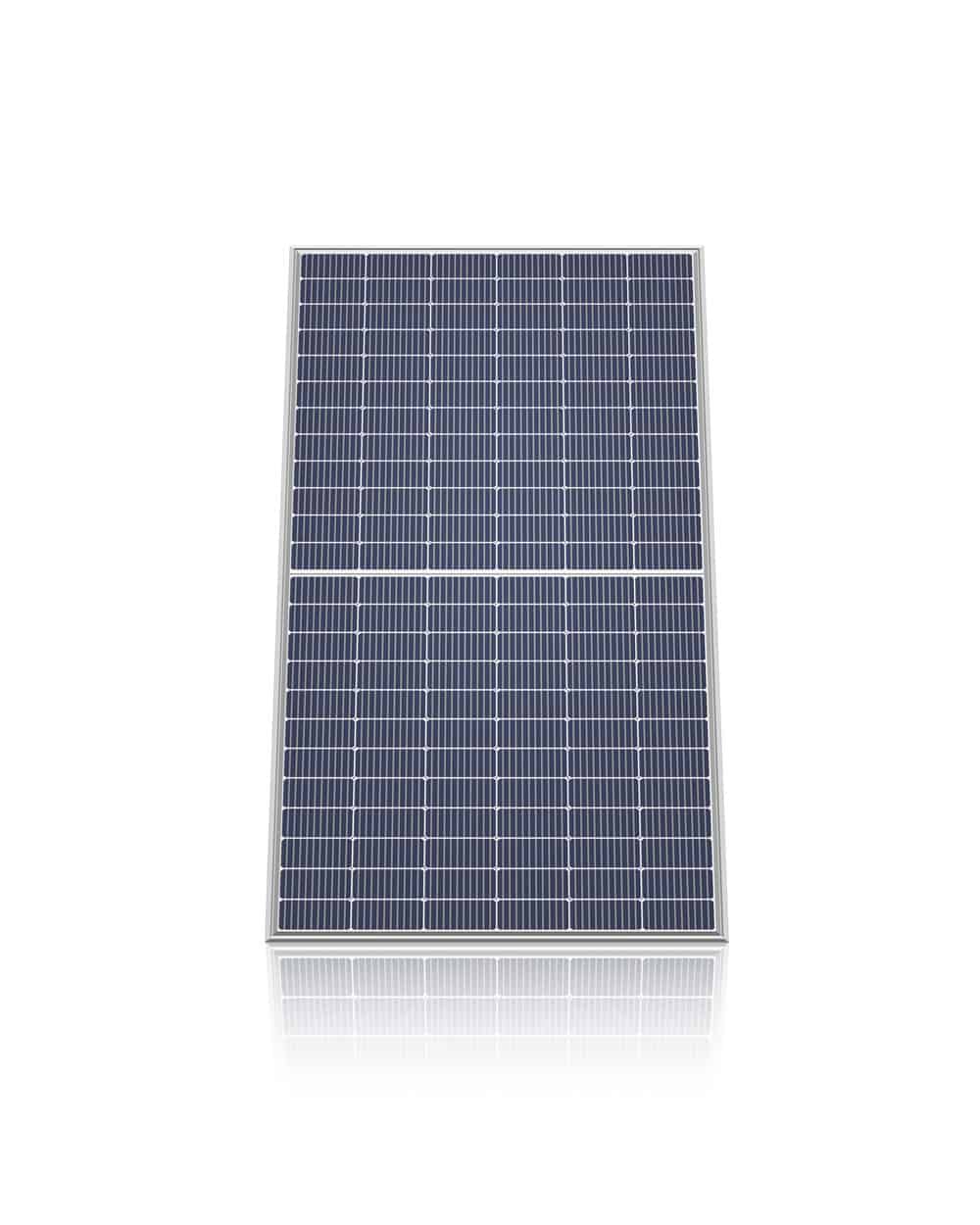

Heliene Solar 144HC M10 SL 540W PERC Bifacial Solar Panel

The Heliene Solar 144HC M10 SL 540W is a high-efficiency bifacial monocrystalline PERC photovoltaic module built for commercial, industrial, and utility-scale solar projects. It pairs 144 half-cut M10x monocrystalline PERC cells with a framed glass–backsheet design, delivering 540W of rated front-side power at 20.9% module efficiency.

Heliene, established in 2010, is a bankable Tier 1 module manufacturer whose production lines use automated robotics and computer-aided inspection in ISO 9001 certified facilities. The 144HC M10 SL series gives EPCs, developers, and installers a large-format PERC bifacial module with documented datasheet performance.

High-Efficiency 540W Solar Performance

• Rated Power Output (Pmpp): 540W
• Module Efficiency: 20.9%
• Power Sorting Range: −0 / +3%
• Bifaciality Factor: 70 ± 5%
• Cells: 144 half-cut M10x monocrystalline PERC cells

Monocrystalline PERC Half-Cut Technology

The module uses M10-size, high-efficiency monocrystalline PERC cells. Its half-cut design with split junction box technology further reduces cell-to-module (CTM) losses, and the module has proven resistance to potential-induced degradation (PID) with reliable performance in high-temperature and high-humidity environments.

• 2% first-year degradation and 0.5% annual power degradation
• Temperature Coefficient of Pmax: −0.34 %/°C
• Temperature Coefficient of Voc: −0.25 %/°C
• Temperature Coefficient of Isc: +0.05 %/°C
• Nominal Module Operating Temperature (NMOT): +45 °C (±2 °C)

Bifacial Energy Generation

Bifacial technology enables additional energy harvest from the rear side of the module. With a bifaciality factor of 70 ± 5%, ground-mounted and elevated arrays over reflective surfaces can gain additional energy beyond the front-side STC rating.

Heliene Solar 144HC M10 SL 540W Electrical Performance

Electrical data at STC (1000 W/m², AM 1.5, 25 °C cell temperature):

• Peak Rated Power (Pmpp): 540W
• Maximum Power Voltage (Vmpp): 42.32 V
• Maximum Power Current (Impp): 12.77 A
• Open Circuit Voltage (Voc): 50.22 V
• Short Circuit Current (Isc): 13.50 A
• Module Efficiency: 20.9%
• Maximum Series Fuse Rating: 30 A
• Maximum System Voltage: 1500 V

Durable Module Construction

The 3.2 mm fully tempered front glass provides superior hail resistance, and the module is built for demanding commercial and utility sites.

• Module Construction: Framed glass–backsheet
• Front Glass: 3.2 mm fully tempered, high-transmission PV solar glass with anti-reflective coating
• Frame: Double-webbed 15-micron anodized aluminum alloy
• Junction Box: IP68 rated with 3 bypass diodes
• Output Cables: 4 mm² (12 AWG), 0.3 m symmetrical cables (1.2 m symmetrical cables optional upon request)
• Connectors: Multi-Contact / Stäubli MC4
• Mechanical Load Test: 5400 Pa (113 psf) front / 2400 Pa (50 psf) back
• Operational Temperature: −40 °C to +85 °C
• Fire Type: Type 1

Dimensions, Weight & Packaging

• Dimensions (L × W × D): 2279 × 1134 × 35 mm (89.72 × 44.65 × 1.38 in)
• Weight: 29.2 kg (64.3 lb)
• 31 modules per pallet (40′ container), 620 modules per 40′ container
• 28 modules per pallet (53′ trailer), 644 modules per 53′ trailer

Installation & Compatibility

With a 1500 V maximum system voltage, 30 A maximum series fuse rating, and Stäubli MC4 connectors on 0.3 m symmetrical 4 mm² cables, this module suits 1500 V string designs for commercial rooftop and ground-mounted arrays. Confirm string sizing against your inverter MPPT window using the Voc and temperature coefficients above, and follow Heliene’s safety and installation instructions; modules should be handled and installed only by qualified people.

Ideal Applications

• Utility-scale solar farms
• Commercial and industrial rooftop systems
• Community solar projects
• Ground-mounted bifacial arrays
• Projects that specify proven PERC technology in a large-format 144-cell module

Warranty & Certifications

• 15-Year Product Warranty
• 25-Year Linear Power Guarantee
• Certifications listed on the datasheet: UL 61215, UL 61730, CSA C22.2 No. 61730

Related PV Modules

Other wattages in the Heliene 144HC M10 SL bifacial family:

• Heliene Solar 144HC M10 SL 545W PERC Bifacial Solar Panel
• Heliene Solar 144HC M10 SL 550W PERC Bifacial Solar Panel
• Heliene HSPE 144HC M10 Bifacial 540W Solar Panel
• Heliene HSPE 144HC M10 Bifacial 520W Solar Panel

N-type options in the Heliene 144HC M10 NTYP SL bifacial family:

• Heliene Solar 144HC M10 NTYP SL 570W N-Type Bifacial Solar Panel
• Heliene Solar 144HC M10 NTYP SL 575W N-Type Bifacial Solar Panel
• Heliene Solar 144HC M10 NTYP SL 580W N-Type Bifacial Solar Panel
• Heliene Solar 144HC M10 NTYP SL 585W N-Type Bifacial Solar Panel
• Heliene Solar 144HC M10 NTYP SL 590W N-Type Bifacial Solar Panel
• Heliene Solar 144HC M10 NTYP SL 595W N-Type Bifacial Solar Panel
• Heliene Solar 144HC M10 NTYP SL 600W N-Type Bifacial Solar Panel

More Heliene and commercial-class modules from AmeriSol Energy Solutions:

• Heliene 156HC M10 NTYP SL Bifacial 640W Solar Module
• SEG Solar YUKON N 580W N-Type Bifacial Dual Glass Solar Panel
• Aptos Solar DNA-144 BFN10 DG 595W N-type Bifacial Dual-Glass Solar Panel

Browse all PV modules in the AmeriSol catalog.

Procurement & Logistics

AmeriSol Energy Solutions supports distributors, EPCs, and installers with module availability checks, freight coordination, and documentation packages for active bids. Share your target ship window, destination, and preferred pallet or container configuration so the team can align supply with your construction schedule.

Datasheet

Download the Heliene 144HC M10 SL Bifacial datasheet, Rev.05 (PDF)

Availability

Contact AmeriSol Energy Solutions to inquire for current availability, lead times, and project support. Pricing is available on request.

Why Choose the Heliene Solar 144HC M10 SL 540W?

The Heliene Solar 144HC M10 SL 540W combines monocrystalline PERC half-cut cell technology, bifacial energy gain, a rugged double-webbed frame, and 1500 V system compatibility into a dependable large-format module for commercial and utility projects.

Choose this panel when your bill of materials calls for verified 540W-class output, UL 61215 / UL 61730 / CSA certification, and straightforward procurement through AmeriSol Energy Solutions.
